Stainless
Steel:
|

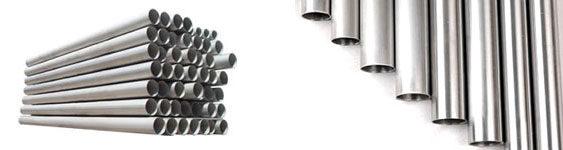

Range of Pipes & Tubes |
Sr. No. |
Material |
Size |
Sch. & Swg. |
Specification |
1. |
Seamless Pipe |
15 mm NB
To
300 mm NB |
Sch. 5s, 10s, 40s, 80s, 160s, XXS |
A-312 |
2. |
Welded (ERW) Pipe |
15 mm NB
To
300 mm NB |
Sch. 5s, 10,
40s & 80s |
A-312 |
3. |
Welded (ERW) Pipe |
150 mm NB
To
600 mm NB |
Sch. 5s, 10s,
40s & 80s |
A-358 |
4. |
Seamless Tube |
6.35 mm OD To
101.6 mm OD |
20 Swg., 18 Swg.,
16 Swg., 14 Swg.,
12 Swg., 10 Swg. |
A-213 |
5. |
Welded (ERW) Tube |
6.35 mm OD To
152 mm OD |
20 Swg., 18 Swg.,
16 Swg., 14 Swg.,
12 Swg., 10 Swg. |
A-249 |
| Note : |
Stainless Steel in Grade |
:- |
TP 304, 304H, 304L, 304LN, 316, 316H, 316L, 316LN, 316Ti, 309, 310, 317L, 321, 347, 409, 410, 420, 430, 446, 202 Etc. |
Special Tube & Pipes |
:- |
Precision Tubes, Capillary Tube, Fabricated Pipe
(with radiography) |
In Form of |
:- |
Round, Square, Rectangle, Oval, Coil, Flexible Pipe, Shaft,
'U' Shape, Hydraulic Tube etc. |
In Length of |
:- |
Standard length & In Cut length also. |
Other Services |
:- |
Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Heat Treatment, Bending, Anneling & Pickled, Sand Blasting, Machining Etc. |
Test Certificate |
:- |
SUPPLIERS Test Certificate / Laboratory Test Certificate from Govt. Approved Lab. / Under Third Party Inspection with Excise Gate Pass to avail Modvat benefit. |
Specialize |
:- |
§ Capillary Tube, Fabricated Pipe, Square & Rectangle & Other Odd Size.
§Heat Exchanger & Condenser Tubes |
|
|
|

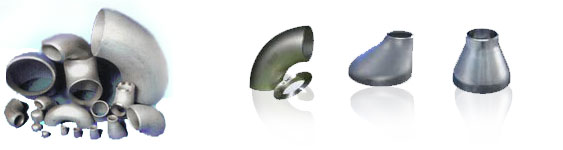

Range of Buttweld [B/W] Fitting |
Sr. No. |
Material |
Size |
Schedule |
Specification |
Item |
1. |
Seamless |
15 NB
To
300 NB |
Sch. 5
to
Sch. XXs |
A-403 B/W
ANSI B16.9 |
§ Bend (Long & Short)
R=2D,3D,5D,10D Etc
§ Elbow ( 180o, 90o & 45o)
§ Tee (Equal & Unequal)
§ Reducer (Con & Ecc)
§ CAP
§ Stubend (Long & Short)
§ Nipple (Barrel) |
2. |
Welded (ERW) |
15 NB
To
600 NB |
Sch. 5
To
Sch. 80s |
A-403 B/W
ANSI B16.9 |
|
|

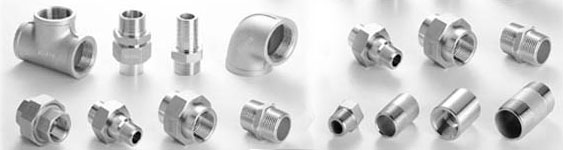

Range of Forged Fitting (S/W & SCRD) |
Sr. No. |
Material |
Size |
Schedule |
Specification |
Item |
1. |
Seamless |
15 NB
To
300 NB |
Sch. 5
to
Sch. XXs |
A-403 B/W
ANSI B16.9 |
§ Bend (Long & Short)
R=2D,3D,5D,10D Etc
§ Elbow ( 180o, 90o & 45o)
§ Tee (Equal & Unequal)
§ Reducer (Con & Ecc)
§ CAP
§ Stubend (Long & Short)
§ Nipple (Barrel) |
2. |
Welded (ERW) |
15 NB
To
600 NB |
Sch. 5
To
Sch. 80s |
A-403 B/W
ANSI B16.9 |

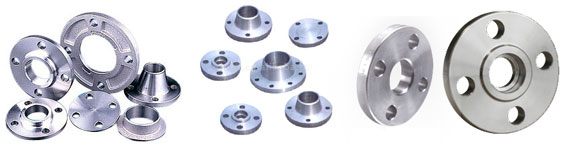

Range of Flanges
Sr. No. |
Material |
Size |
Class |
Specification |
Item |
1. |
Forged Flange |
15 NB
To
750 NB |
150, 300, 600, 900
& 1500 LBS |
A-182
ANSI B16.5 |
Flanges, SORF, WNRF,
BLRF, SWRF, LAP Joint,
Threaded, Reducing |
| 2. |
Plate Flange |
15 NB
To
500 NB |
ASA 150, 300
Table D, E, F, H, DIN, ND-6, 10, 16, 25, 40 |
A-240,
ANSI B16.5 |
SORF, BLRF, LAP Joint
& Spectacle |
Stainless Steel in Grade |
ASTM A 403 WP |
:- |
304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S, 317L, 321, 347, 410, 420, 446, 202 Etc. |
ASTM A 182 F |
:- |
304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S, 317L, 321, 347, 410, 420, 440C, 202 Etc. |
Other Forms |
:- |
Compression Fitting / Instrumentation / Hydraulic Fitting /
Dairy Fitting & Also As Per Drawing : |
Test Certificate |
:- |
SUPPLIERS Test Certificate / Under Third Party Inspection
& with Excise Gate Pass to avail Modvat benefit. |
Specialize |
:- |
Long Bend with Radius - R = 3D, 5D &
10D Pigabble Bend & As per your drawing |

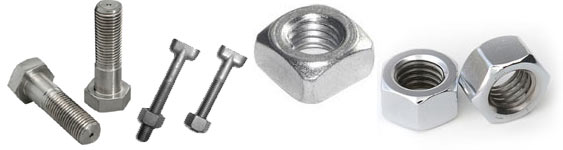

Range of Nut Bolt/Washers
We are the Exporter, Stockist & Supplier of Stainless, Nickel, Alloy Steel & Aluminium, Copper. Brass Fasteners. Like:
- S. S. Hex Bolts, Nuts, Washers & Spring Washers (A2-A4)
- S. S. Allen Cap Screws & Grub & Allen CSK Screws
- S. S. Self Locking Nut, Dom Nut, Wing Nut & Lock Nut
- High Tensile Socket Head Cap & Grub Screws, Tool Post Bolt
- Specialist in S. S. 316 Hex Nuts & 316 Hex Bolts
|
| |
|
|
