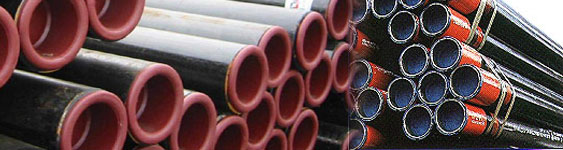

Carbon Steel |
|
| Range of Pipes &
Tubes |
Sr. No. |
Material |
Size |
Schedule |
Specification |
SUPPLIERS |
1 |
Carbon
Steel Pipe
|
15
NB
To
150 NB |
Sch.
40s
To
Sch. XXs |
A-106 Gr. B
Seamless |
MSL / ISMT /
Imported with LRS, BV & with IBR Test
Certificate |
200
NB
To
600 NB |
Sch.
20
To
Sch. 160 |
2 |
Low Temperature
Carbon Steel |
15
NB
To
500 NB |
Sch.
40s
To
Sch. XXs |
A-333 Gr. 6
Seamless |
ISMT / MSL /
Imported |
|
Note :- |
Other
Specification Available |
:- |
BS 3059, ASTM A
53, API 5L,
ST-52, ST-45.8,ASTM A 671 / 672 / 691 |
Boiler
Tube in Gr. |
:- |
BS 3059, Gr. 360
/ 440, SA / ASTM A 210 Gr. A 1(with IBR Test Certificate) |
Heat
Exchanger Tube in Gr. |
:- |
SA / ASTM A 179
/ 192 / 210 / 214 |
Other Tubes |
:- |
Capillary, ERW /
CDW Boiler Tubes, Air Heater Tubes & Cold drawn Seamless
Tubes. |
Special Tube |
:- |
Saw Pipes Tube
& Steam Pipes, Precision Tubes,Fabricated Pipe
(with
radiography) |
In Form of |
:- |
Round, Square,
Rectangle, Oval, Coil, Flexible Pipe, Shaft, ‘U’ Shape,
Hydraulic Tube & Horn Tube. |
In Length of |
:- |
Standard length,
Double length & In Cut length
also. |
Other
Services |
:- |
Draw &
Expansion as per required Size & Length, Heat Treatment,
Bending, Galvanizing, Anneling & Pickled,Sand Blasting,
Machining Etc. |
Test
Certificate |
:- |
SUPPLIERS
Test Certificate / IBR Test Certificate (Form III-D) /
Laboratory Test Certificate from Govt. Approved Lab. &
Under Third Party Inspection with Excise
Gate Pass to
avail Modvat benefit. |
Specialize |
:- |
§ In
Odd Size.
§ Heat Exchanger
& Condenser
Tubes |
|
|

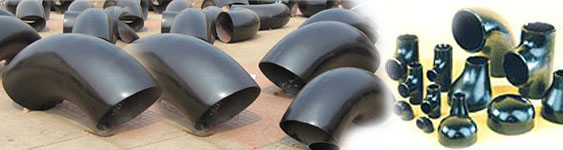

| Range Of Buttweld [B/W]
Fitting |
Sr. No. |
Material |
Size |
Schedule |
Specification |
Item |
1.
|
Carbon
Steel
|
15 NB
To
500 NB |
Sch.
40
To
Sch. XXs |
A-234 WPB
B/W
Seamless
ANSI B16.9 |
§ Bend(Long &
Short)
§ Elbow
(180o, 90o &
45o)
§ Tee
(Equal & Unequal)
§ Reducer (Con
& Ecc)
§ CAP
§ Stubend
(Long & Short)
§ Nipple
(Barrel)
|
200
NB
To
600 NB |
Sch.
10
To
Sch. 80s |
A-234 WPW
B/W
Welded
ANSI B16.9 |
|
|
|
|
|
2. |
Low Temperature
Carbon Steel |
15
NB
To
300 NB |
Sch.
40
To
Sch. XXs |
A-420 WPL 6
B/W
Seamless
ANSI B16.9 |
200
NB
To
600 NB |
Sch.
10
To
Sch. 80s |
A-420 WPL 6 B/W
Welded
ANSI B16.9 |
|
|

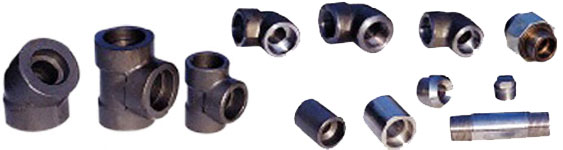

| Range Of Forged
Fitting |
Sr.
No. |
Material |
Size |
Class |
Specification |
Item |
1 |
Forged Carbon
Steel |
15
NB
To
100 NB |
3000
6000
&
9000
LBS |
A-105,
ANSI
B16.11
S/W
& SCRD
(As per
Gauge)
(NPT / BSP / BSPT) |
§ Elbow -
90o & 45o
§ Tee - Equal
& Reducing
§ Union
§ Cross
§ Coupling – Full,
Half &
Quick Release
§ Socket
(Reducing)
§ CAP
§ Plug-Hex &
Square,
§ Nipples
(Hex/Reducing)
§ Bushing
§ Sokolet,
Weldolet, Thredolet,
Elbolet &
Nipolet |
| |
|

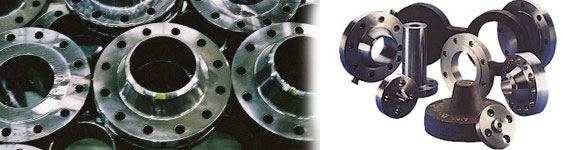

| Range
Of Flanges |
Sr.
No. |
Material |
Size |
Class |
Specification |
Item |
1. |
Forged
Flanges |
15
NB
To
750 NB |
150, 300, 600,
900 & 1500 LBS |
A-105
ANSI
B16.5 |
Flanges, SORF,
WNRF, BLRF, SWRF, LAP Joint, Threaded,
Reducing |
2. |
Plate
Flanges |
15
NB
To
500 NB |
ASA 150,
ASA
300
Table D, E, F, H, DIN, ND-6, 10, 16, 25,
40 |
A-516,
Gr.60/70
IS 2062
ANSI B16.5 |
SORF, BLRF, LAP
Joint &
Spectacle |
|
| |
|
|
