Sr. No.

Material

Size

Class & Thickness

Specification

SUPPLIERS

1.

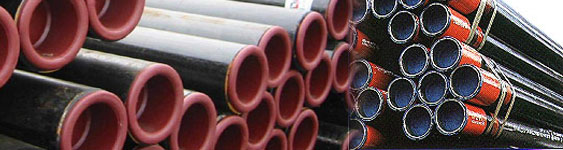

M. S. & G. I.

15 NB
To 150 NB

A, B, C Class

IS 1239

Tata, Zenith, Jindal, Mukat, Lloyds, Lalit Profiles Etc.

200 NB
To 500 NB

4.85 mm
To 12.7 mm Thk.

IS 3589
(Fe 330, Fe 410)

  Note:-

 Special Tube

:-

Saw Pipes Tube & Steam Pipes, Precision Tubes, Fabricated Pipe(with radiography)

 In Form of

:-

Round, Square, Rectangle, Oval, Coil, Flexible Pipe, Shaft,‘U’ Shape, Hydraulic Tube & Horn Tube.

 In Length of

:-

Standard length & In Cut length also.

 Other Services

:-

Draw & Expansion as per required Size & Length, Heat Treatment, Bending, Galvanizing, Anneling & Pickled, SandBlasting, Machining (CNC) Etc.

 Test Certificate

:-

SUPPLIERS Test Certificate /  Laboratory Test Certificate from Govt. Approved Lab. & Under Third Party Inspection with Excise Gate Pass to avail Modvat benefit.

 Specialize

:-

Square Tube, Rectangle Tube & Odd Size

Sr. No.

Material

Size

Class & Thickness

Specification

Item

1.

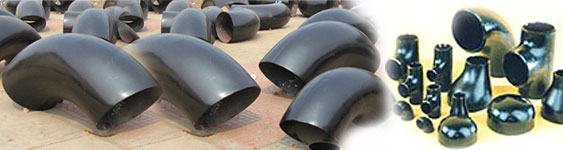

 M. S. & G. I.

15 NB
To
150 NB

‘B' Class
&
'C' Class

 IS 4310
Welded
ANSI B16.9

§   Bend (Long & Short)
§   Elbow (180^o, 90^o& 45^o)
§   Tee (Equal & Unequal)
§   Reducer (Con &Ecc)
§   CAP
§   Stubend (Long &Short)
§   Nipple (Barrel)

200 NB
To 500 NB

6.35 mm
To 8 mm Thk.

ISI Mark

Sr. No.

Material

Size

Class

Specification

Item

1.

 Forged
 Fittings

15 NB
To
100 NB

3000
6000
& 9000 LBS

IS, BS, ASTM
ANSI B16.11
S/W & SCRD
(As per Gauge) (NPT / BSP / BSPT)

§   Elbow  - 90^o & 45^o
§   Tee - Equal & Reducing §   Union
§   Cross
§   Coupling - Full & Half
§   Socket Reducing §   CAP                                §   Plug-Hex & Square
§   Nipples (Hex/Reducing)
§   Bushing
§   Sokolet, Weldolet,
   Thredolet, Elbolet &
    Nipolet

Sr.No.

Material

Size

Class

Specification

Item

1.

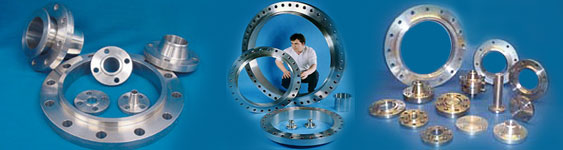

 Forged  Flanges

15 NB
To 750 NB

150, 300, 600,
900 & 1500 LBS

ANSI B16.5

Flanges, SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing

2.

 Plate Flanges

15 NB
To
500 NB

ASA 150, 300
Table D, E, F, H, DIN, ND-6, 10, 16, 25, 40

 IS 2002
ANSI B16.5

SORF, BLRF, LAP Joint
& Spectacle

Note:-

 Other Forms

:-

Compression Fitting / Instrumentation / Hydraulic Fitting Also As Per Drawing.

 Other Services

:-

Maching (CNC), Threading (As per Gauge), Galvanising, Sand Blasting Etc.

 Test Certificate

:-

SUPPLIERS Test Certificate /  Laboratory Test Certificate from Govt. Approved Lab. & Under Third Party Inspection with Excise Gate Pass to avail Modvat benefit.

Sr. No.

Material

Size

Thickness

Specification

SUPPLIERS

1.

Mild Steel

1220 mm x 4880  mm
1500 mm x 6300  mm
2000 mm x 10000mm
2500 mm x 10000mm

1 mm
To 150 mm

IS 2062

SAIL, Lloyds, Jindal, Essar, Shah Alloys, Ispat Etc.

2.

GI

1220 mm x 2440 mm 1220 mm x 6000 mm
1500 mm x 6300 mm

1 mm
To 20 mm

DIN, BS, IS
EN Series

 Note:-

 Other Grade

:-

CRCA, Spring Steel, Silver Steel Etc.

 Sheet Finishing

:-

HR, CR Etc.

 Sheet & Plate in Form of

:-

Coils, Chequred Plate, Perforated Sheet, Strip, Blank (Circle), Ring (Flange), Flats, Angle, Channel, ‘T’, I Beam, Tray Etc.

 Other Services

:-

Heat Treatment, Anneling, Pickling, Electroplating, Anodising, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

 Test Certificate

:-

SUPPLIERS Test Certificate /  Laboratory Test Certificate from Govt. Approved Lab. & Under Third Party Inspection with Excise Gate Pass to avail Modvat benefit.

Sr. No.

Material

Diameter

Length

Specification

SUPPLIERS

1.

Mild Steel &
EN Series

1 mm
To
500 mm

50 mm Long
To
6000 mm Long

IS
BS
DIN

Super Forging

 Note:-

 Mild Steel in Grade

:-

Gr. 1008, 1010, 1015, 1020, CK35, CK45, CK55, CK60 Etc.

 EN in Grade

:-

EN-1A, EN-3B, EN-8, EN-9, EN-16, EN-18, EN-19, EN-24,
EN-29B, EN-31, EN-32B, EN-36, EN-36C, EN-42J, EN-45,
EN-47, EN-48A, EN-100, EN-111, EN-202, EN-352, EN-353,
EN-1117 Etc.

 Bar Finishing

:-

Bright, Polish & Black

 Bar in Form of

:-

Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Casting, TMT Etc. ,

 Other Services

:-

Machining (CNC), Heat Treatment, Anneling, Pickling, Polish, Electroplating, Anodising, Rolling, Forging, Cutting, Bending, Minor Fabrication,

 Test Certificate

:-

Laboratory Test Certificate from Govt. Approved Lab. & Under Third Party Inspection
